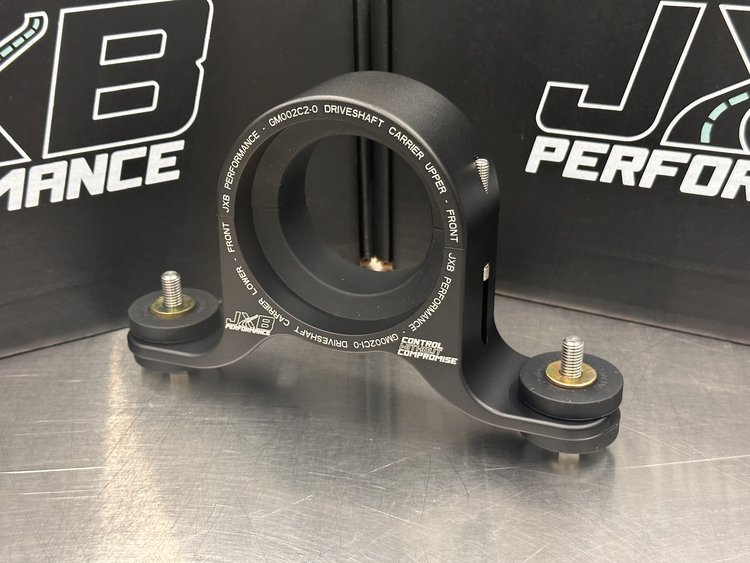

JXB Performance Driveshaft Center Support

Description The stock center support bearing carrier holds the driveshaft in place with a layer of thin rubber. While that’s great for making sure no NVH makes it to the cabin, it doesn’t keep the bearing centered well under load, allows the bearing to sag over time and ruin the driveshaft alignment, and creates slop in the driveline during shifts and throttle application. Over time the OEM bushing sags and becomes brittle, eventually dry rotting and cracking. Even on the best-kept cars, the stock bushing can start to form cracks in as little as 5-10 years. When the bushing lets go, it puts more stress on the shaft and leads to excessive vibration and clunking. To make matters worse, the stock carrier is molded onto the center support bearing, so it’s not easy to replace without special tools. The videos below were recorded on a 5th gen Camaro ZL1. The 3rd gen CTS/CTS-V uses a similar carrier design. The driveshaft is not well-supported by the soft OEM carrier, so it’s allowed to travel off-center during rapid loading and unloading. The first video shows a comparison of the behavior while driving. The second video shows a comparison of how much an OEM carrier gives under load and the improvement with the JXB carrier. This upgraded unit keeps the driveshaft firmly in place at all times, and its solid construction ensures it will never sag or crack over time. The thick bushings ensure the driveshaft cannot move from center, maintaining driveshaft alignment at all times. Two options are available for the bushings, both of which are many times over better than the stock bushing. We’ve paid close attention to the NVH levels associated with this upgrade. After extensive design iterations, we’ve come up with custom isolator bushings that separate the carrier from the body of the vehicle and mounting hardware. These carriers substantially reduce NVH levels. The street bushings absorb most of the NVH from the drivetrain. Some light NVH is possible at some speeds in the form of a soft hum. With a modified exhaust or windows down you’ll probably never hear it. The track bushings are for those who want no-compromise drivetrain performance. These may create a substantial amount of cabin noise. Not sure which is for you? They’re interchangeable so you can try them both. Installation doesn’t require removal of the driveshaft. The 2-part design clamps around the OEM bearing. The old carrier must be removed, so a cutting tool is required. The exact steps to access the carrier will vary slightly by model, but the removal and installation of the new carrier are the same. The basic steps are: Remove any braces or splash shields preventing exhaust and heat shield removal Remove or lower exhaust in area of center support bearing Remove heat shielding covering center support bearing Cut off OEM carrier and remove rubber support material with razorblade, leaving base layer of rubber intact on the bearing Clamp new carrier around OEM bearing   Fits factory OEM two-piece driveshafts only.  Will not fit aftermarket one-piece driveshafts.   Made in U.S.A.!   Supported Vehicles: 2016 through 2019 ATS and ATS-V (all AWD and RWD variants) 2014 through 2019 CTS and CTS-V (all AWD and RWD variants)
