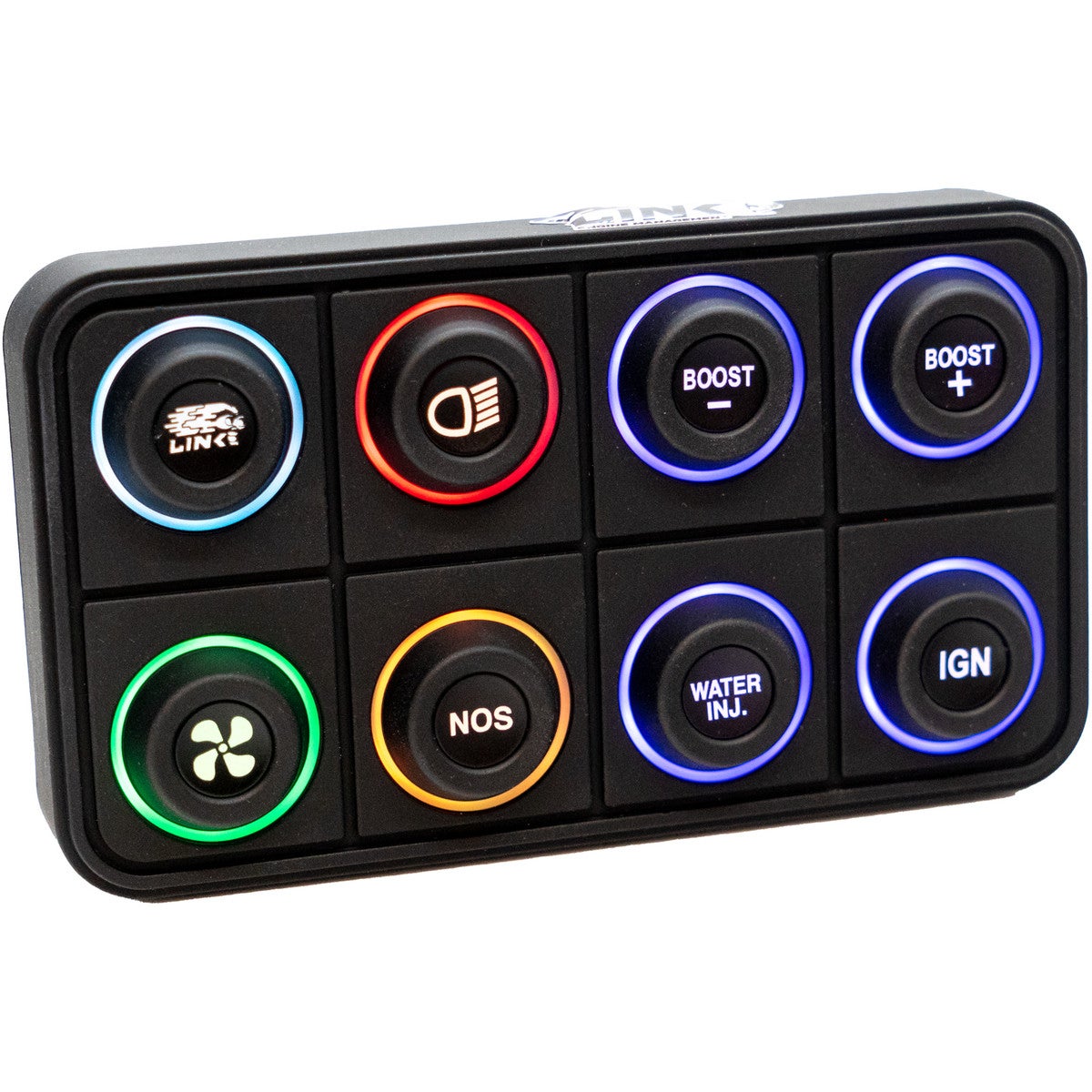

Link CAN Keypad 8 button

Product descriptionRugged 8 key CAN Keypad with interchangeable 15mm inserts (sold separately).Custom button inserts and configurable RGB indicator rings per button allow for extremely flexible set-ups.The keypad is designed for ultimate reliability - IP67/IP69K water and dust resistant, -40 to 70 operating temperature range, UV 400hrs, salt spray resistant and switches rated to 3 million operations.Can be installed both inside and outside, perfect for street, track and off-road use. Product informationFeatures: •CAN Configurable with G4X PC Link – Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle. •Customizable Button Inserts – The replacement system for individual inserts makes modifying the keypad layout simple and economical. •IP67/IP69K Waterproof rating – Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs. •Compatible with all G4X ECU’s. Built-in support from G4X PC Link vers 6.22 onwards, also with Link Razor PDM Box Contents:1 x 4 Button CAN Keypad1 x DTM4 Mating Connector Kit1 x Link Sticker1 x Keypad Button Insert – Link Logo Specifications:Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low)Switch Life - 3 million operationsCANopen Node ID – 0x15 (21)Default Baud Rate - 1000kbit/sIngress protection Rating – IP67/IP69KChemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic AcidUV Protection - UVB 400 hoursSalt Spray Per - ASTMB117Dimensions – 65mm (W) x 70mm (H)Mounting Specs:Mounting Stud Gap (Centre to Centre) 28.8mmNuts thread: #10-32Maximum torque: 0.8Nm Shipping Product can be shipped with these shipping methods. Posti EMS 72,00 € Express delivery to anywhere in the world. EMS express parcels (Express Mail Service) are delivered to the recipient through the fastest possible route. Deliveries to the EU zone within 1–3 working days and elsewhere in the world within 2–8 working days.
