G5 ECU Plug-In - Toyota GT86/Subaru BRZ/Scion FR-S

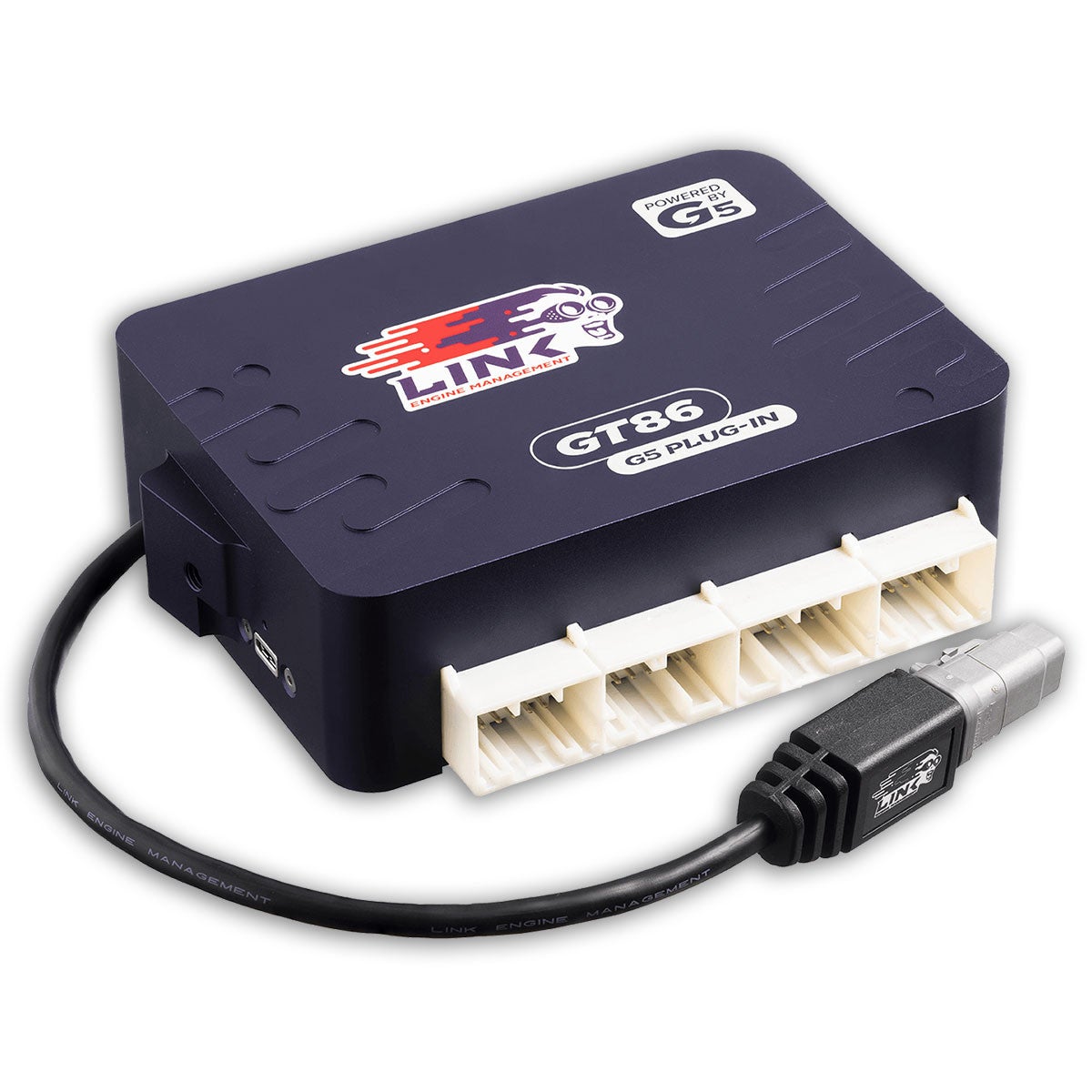

Product descriptionThe GT86 G5 Plug-in is a standalone plug and play replacement for the factory ECU and plugs straight into the original wiring loom, no adapter harness needed and comes with a sample map for a tuning head start. The GT86 G5 Plug-in runs the same powerful microcontroller and firmware as the G5 Voodoo Pro. Designed for the 2.0 L 4U-GSE/FA20 H4 Engine. Support for both Manual and Automatic Transmissions. Models Supported: Toyota 86, ZN6, 2012 – 2021Toyota GT86, ZN6, 2012-2021Subaru BRZ, ZC6, 2012-2020Scion FR-S 2013-2016 For more technical information please see the Features and Specifications tabs. In the box: G5-GT86 Plugin ECUUSB-C Connection CableLocking USB-C extension cable for easy tuning access2 x M6 screws for ECU mounting in OEM bracketDTM4 CAN Connection Cable (Pre-Installed in Enclosure)Link stickers Product informationControl both Direct and Port InjectionFull OEM CAN Bus integrationControl both Manual and Automatic TransmissionsBillet CNC Aluminium EnclosureMounts in OEM LocationIncludes a locking USB-C extension cable for easy tuning accessComes with a built-in powered DTM4 CAN cableFull factory E-throttle (DBW) controlFull VVT-i control512MB of Onboard Data Logging, up to 250 channels and 100k samples per secondRuns on Link’s renowned PC Link, giving you the confidence to get started right awayBacked by Link’s Limited Lifetime Warranty All Link Plug-in ECUs come with the below features as standard: Plug and Play - A Direct Replacement for the Factory ECU, no adapter looms needed.All motorsport features enabled – Anti-lag, Boost Control, Cruise Control, Gear Shift Control, Nitrous Control, Launch Control, Paddle Shift Control, Race Timer and Power Management, Rolling Anti-lag and Traction ControlTwo CAN bus channelsAdvanced Modelled Fuel equation with flex fuel capability, or a more basic “Traditional” equation is availableExceptional adaptive knock control or traditional threshold-based knock control.Onboard 3 Axis AccelerometerOnboard Trigger OscilloscopeLive user configurable math channels running in ECUVery flexible user configurable CAN bus inputs and outputs. Most 3rd party CAN bus devices supportedCAN Keypad controlFlexible engine protection limitersPC Link software – Tuning, display and powerful log analysis all in one package. I/O Options: The following expansion connector inputs/outputs are provided: Expansion connector 1:1: 14V Out2: AUX 153: AUX 164: DI 115: DI 106: DI 9 7: 5V Out8: GND Expansion Connector 2:1: 14V Out2: Not Connected3: AN Volt 124: AN Volt 11*5: AN Volt 6*6: AN Temp 4*7: 5V Out 8: GND *These inputs each have a jumper to either connect them to the Expansion plug or to their normal functions on the main header. Shipping Product can be shipped with these shipping methods. Posti EMS 100,00 € Express delivery to anywhere in the world. EMS express parcels (Express Mail Service) are delivered to the recipient through the fastest possible route. Deliveries to the EU zone within 1–3 working days and elsewhere in the world within 2–8 working days.
